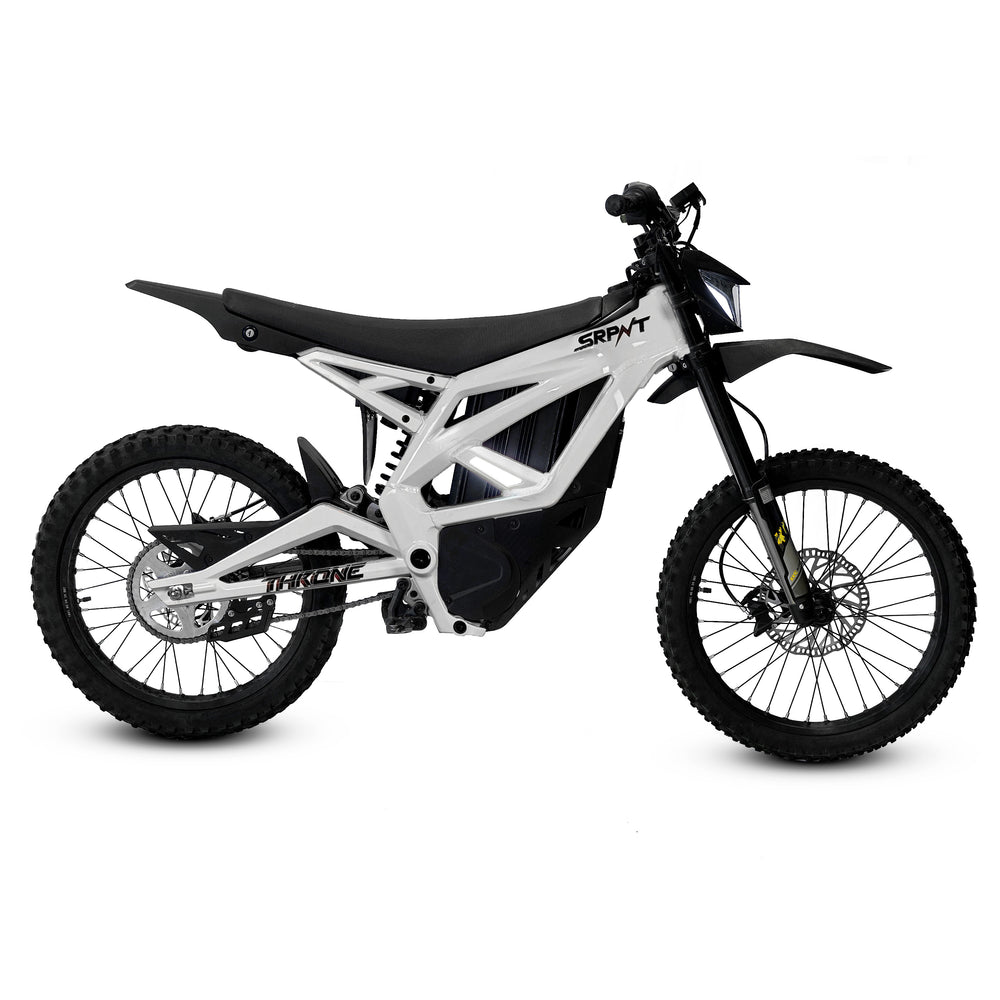

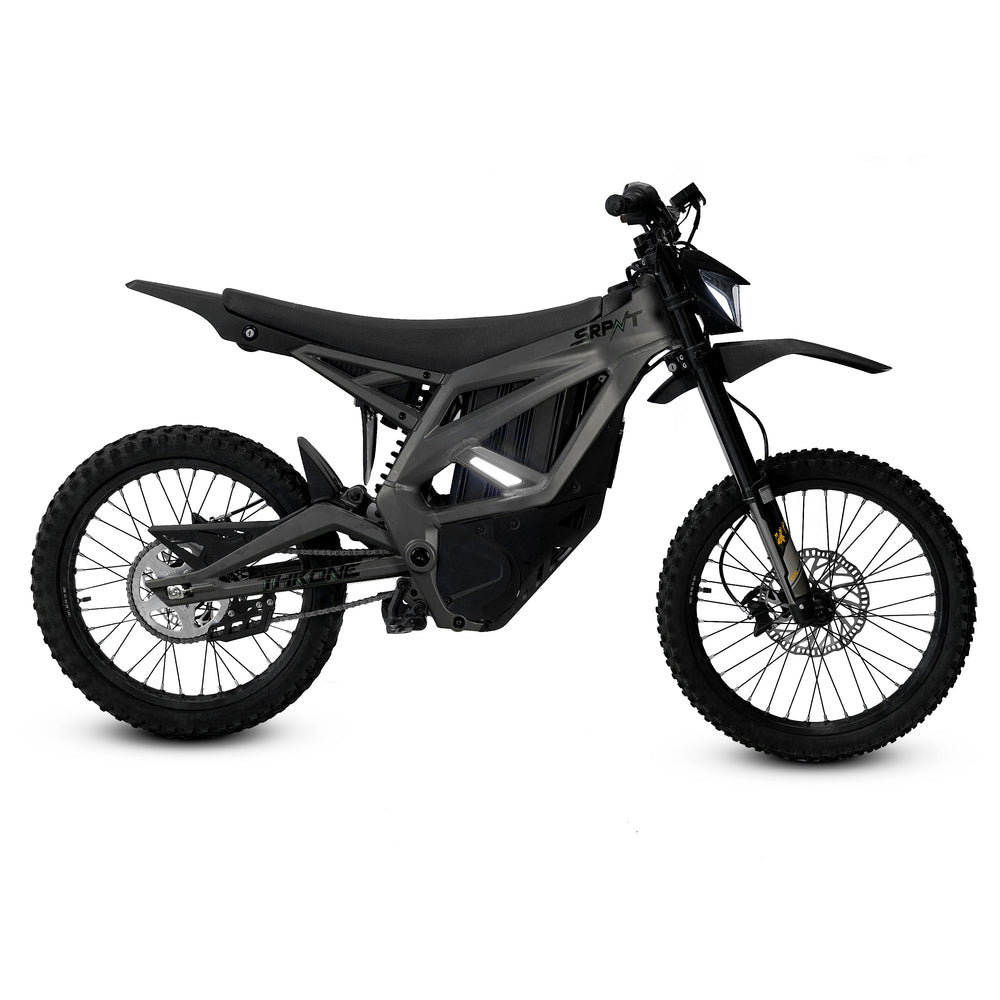

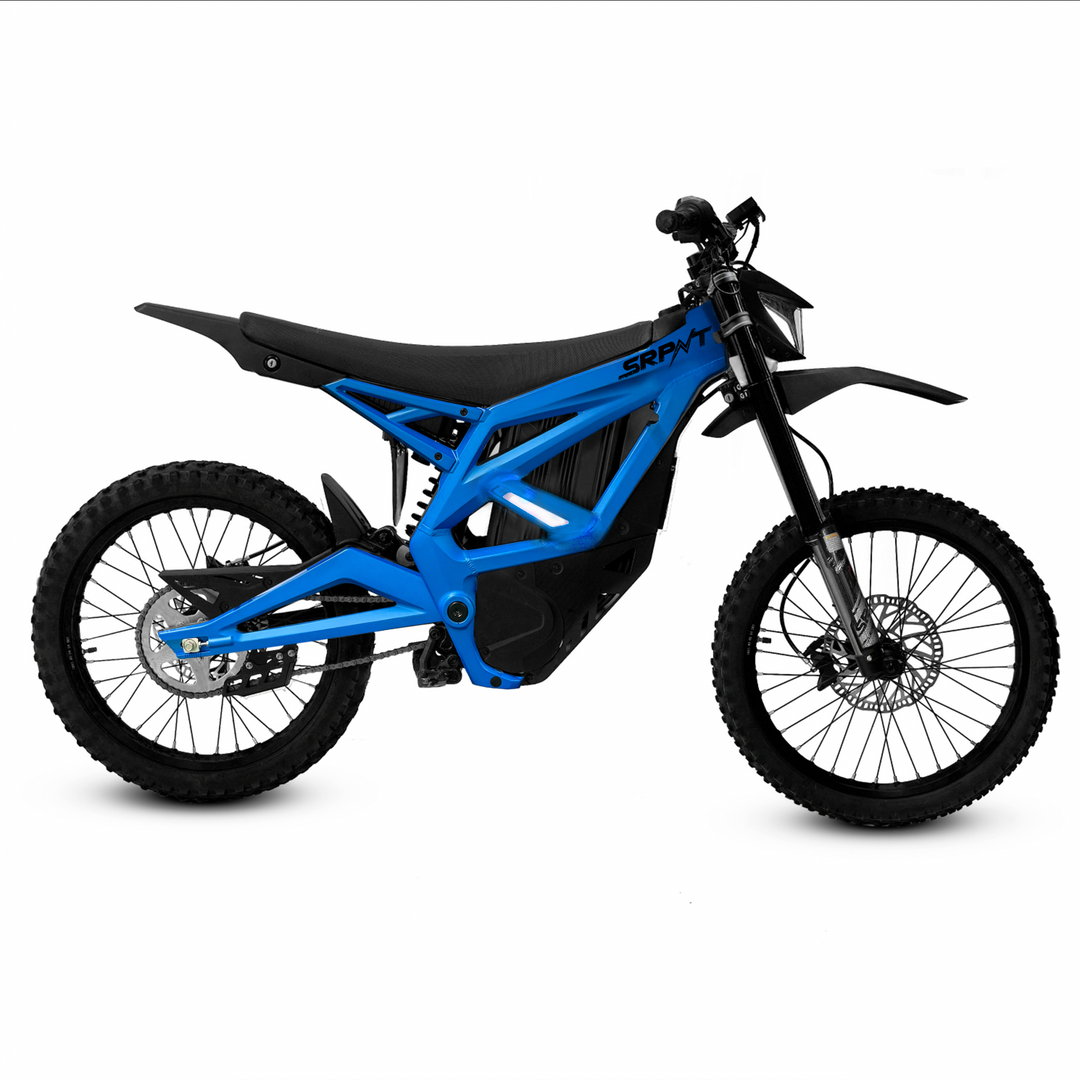

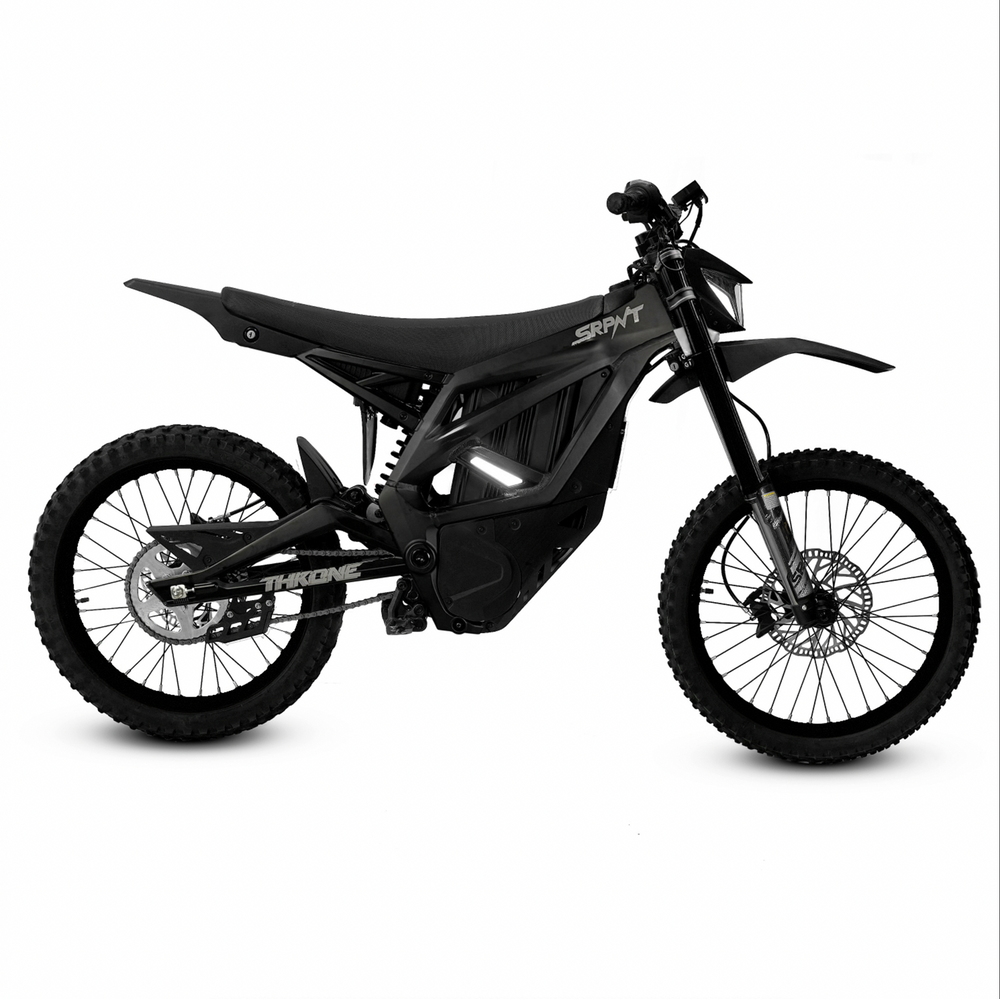

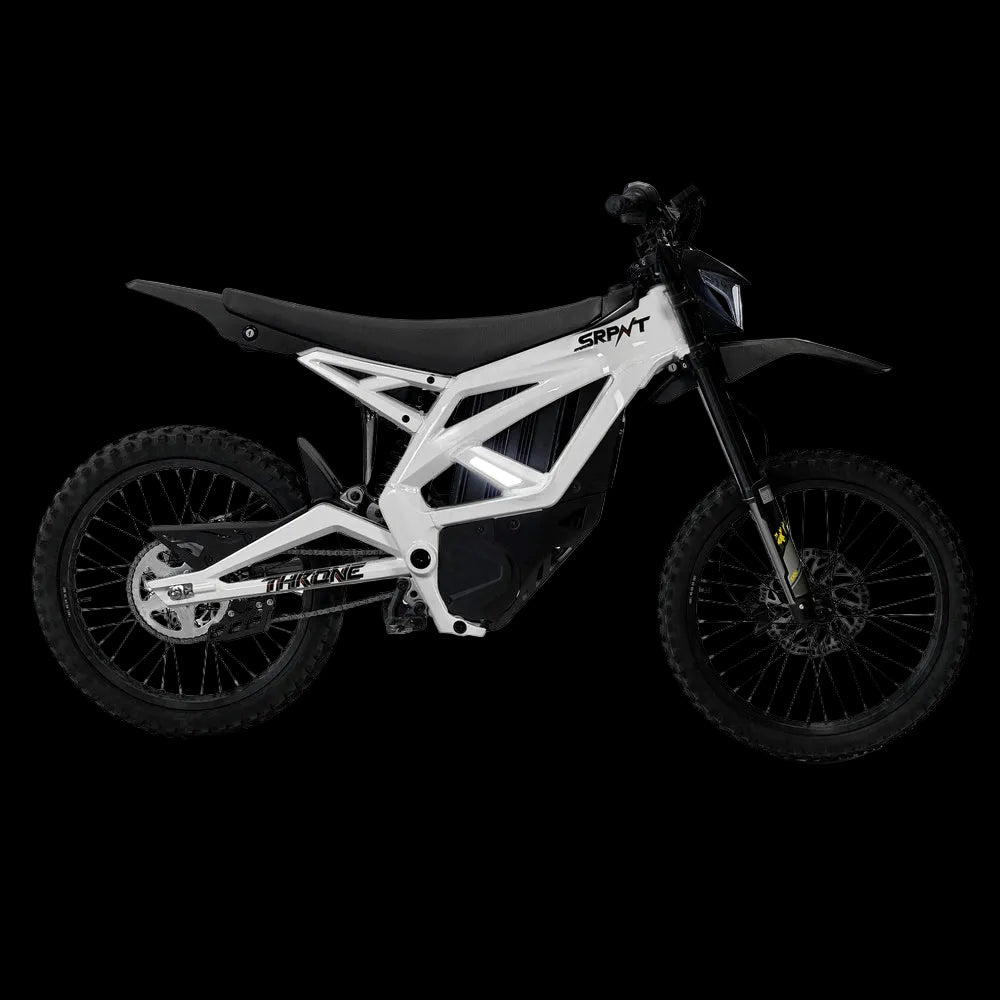

SRPNT X3 AVAILABLE NOW

Introducing the SRPNT X3 models with 13,000W of power

 MOTOR

Motor Type: PMSM

Mounting Position: Mid

Weight / Motor External Diameter: 9.55kg / 155mm

Motor Axial Length: 130mm

Peak Efficiency: 98%

Power: 13,000Ws

CONTROLLER

Controller Type: FOC

Dimensions: 160mm x 142mm x 79mm

Peak Efficiency: 98.50%

Power Modes: Eco, High, and Sport

MOTOR POWER SYSTEM

Rated Voltage: 72V (DC)

Rated Torque / Peak Torque: 95115Nm

Motor Shaft Output Torque @ 1000RPM: 460Nm

Rated Rotation Speed: 5400rpm

Peak Efficiency: 97%

Range of Efficiency (≥80): 3Nm - 45Nm

TRANSMISSION

Gear Ratio: 13:51

Transmission: Motorcycle Chain & 428 Drive Chain

Model: German Continental Brand, 8M CXA

ELECTRICAL COMPONENTS

Horn: CQC

Battery: 72V 40AH Lithium Battery with 176 LG Cells

Battery Life Time: 500 Cycles

Battery Charge Level: Integrated Battery LCD Display

Charger: 9A

Charging Time: 3.5 Hours

USB Connection: Type C

Speedometer: TFT

LED Headlight & Rear Light: Yes

FRAME DETAILS

Chassis - Swing Arm Material: No.6061 T4&T6 Aluminum

Chassis Construction Method: Forged by 3000 Tons of Pressure

Chassis Surface & Color Processing: Baked Paint

Front Suspension: Inverted Suspension Fork with 200mm Travel

Rear Shock Absorber: KKE Suspension Link System

Wheel Type & Size: Front/Rear :1.4-19 , 1.6-19 Alloy Hubs

DIMENSIONS

Ground Clearance: 270mm

Wheelbase: 1250mm

Seat Height: 85cm

Vehicle Dimensions: 1880mmX805x1130mm

DRIVE

Top Speed: 90km/h

Net Weight 73kg

Rear Sprocket 51T

Side Stand Yes with Kill Switch

Battery Usage 600 Uses

Carry Capacity 320lb
