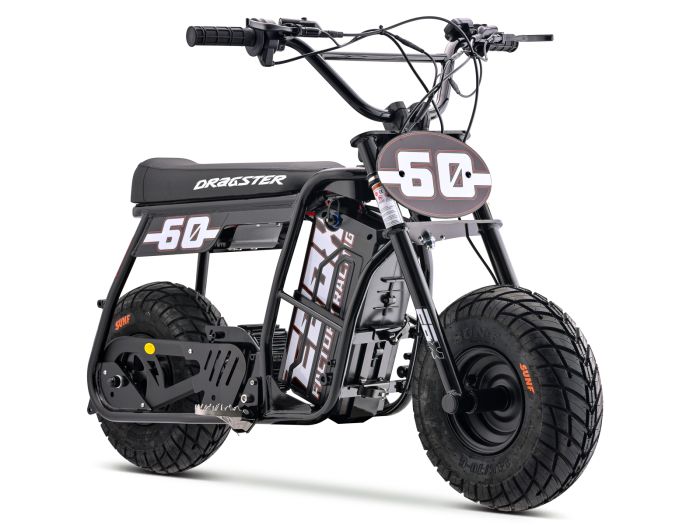

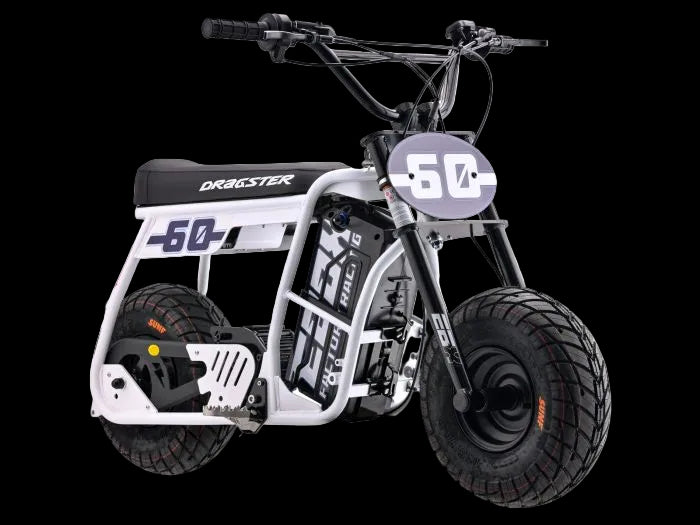

EBOX DRAGSTER 60 AVAILABLE NOW

SPECS

Frame type Full duplex

Fork Rigid High Tensile

Bar Risers Cast alloy 36mm rise Ø22.2

Front wheel size 6"

Rear wheel size 6"

Front brake Hyraulic Disc (Right lever) e-moto brakes

Front disc Wavey rotor 160mm, 6 bolt 48mm BCD

Rear brake Hyraulic Disc (Left lever) e-moto brakes

Rear disc Wavey rotor 160mm, 6 bolt 48mm BCD

Front tyre 145/70-6 SUNF fast SM tyres

Rear tyre 145/70-6 SUNF fast SM tyres

Chain 219H 108L

Gearing Front 10T, Rear 55T

Max load 100kg

Handlebar High Tensile 2 Piece 29.5" x 7"

Seat Dragster seat

Motor 60V EBX PMSM motor with temp feedback and encoder

Rated Power 3.3KW

Peak power 3.7KW (5hp)

Max RPM 7,500

Battery 60v 18.2Ah battery 18,600 cells with QS8 connector

Controller 80 Amp fardriver controller

Throttle SURRON style full twist

Display TFT odometer display with 3 speed modes and fault code analysis software

Connectors Automotive connectors with sealed wiring harness

Charger AC 100-240V, Output: 67.2V, 3A

TECH

Charge time 5-6 hours

Range 21-25 miles (35-40Km)

Top speed 45mph (72Km/h)

External adjustability 3 riding modes

Frame construction High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.

Waterproof IP54

Other USB A + C charging port

Wheelbase 882mm

Ground clearance 120mm

Seat height 585mm

Bar height 810mm

Bike Weight 42.5kg (94lbs)

Warranty EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
