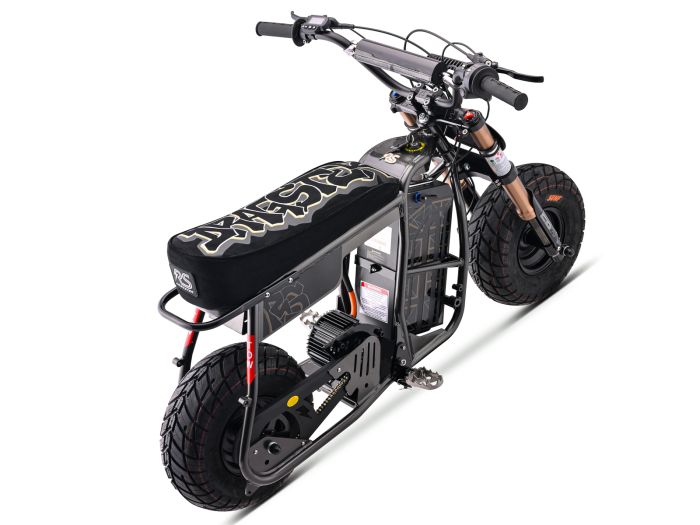

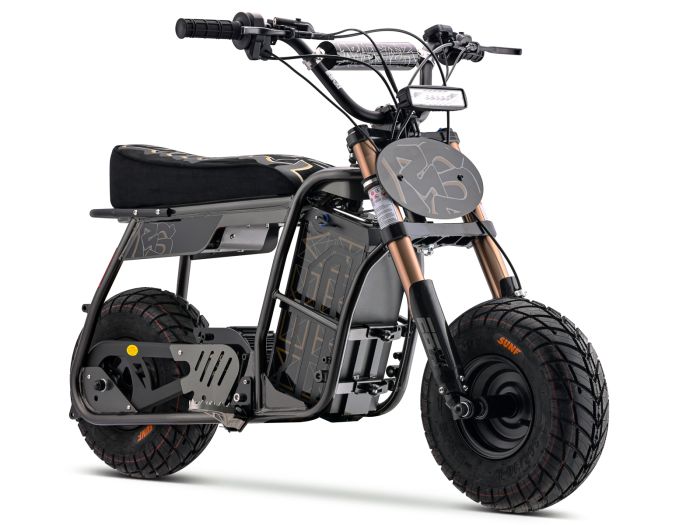

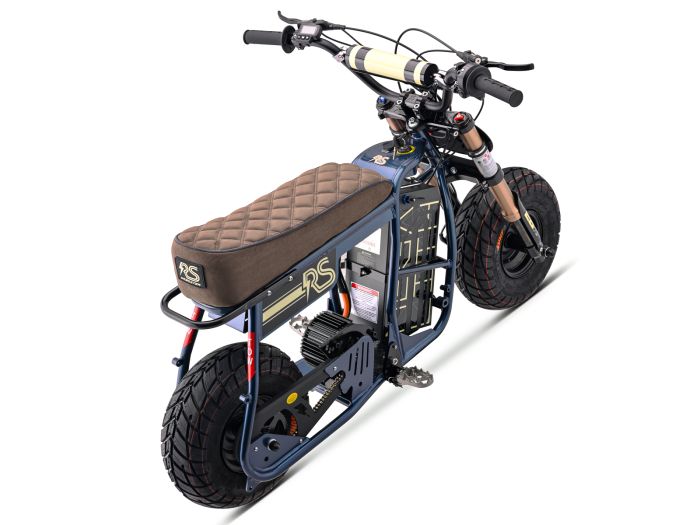

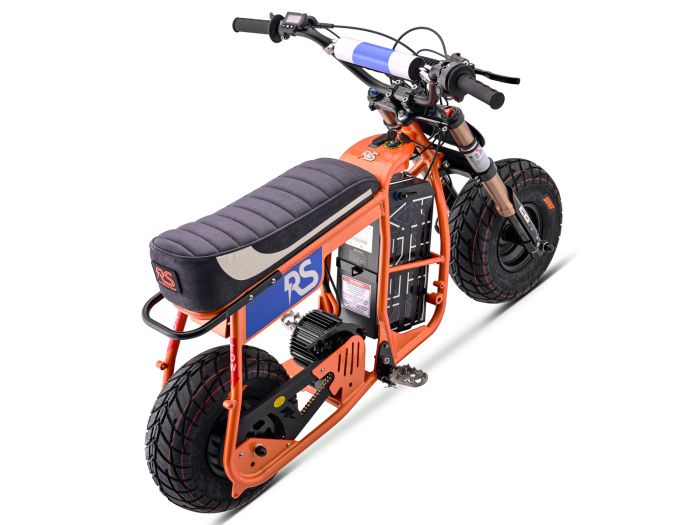

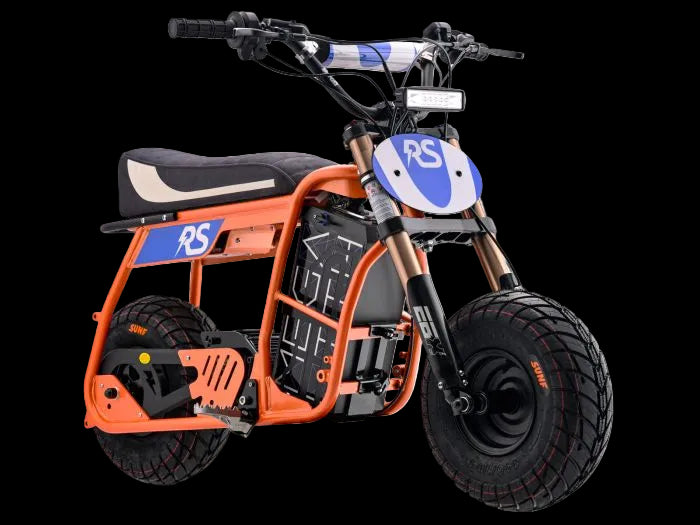

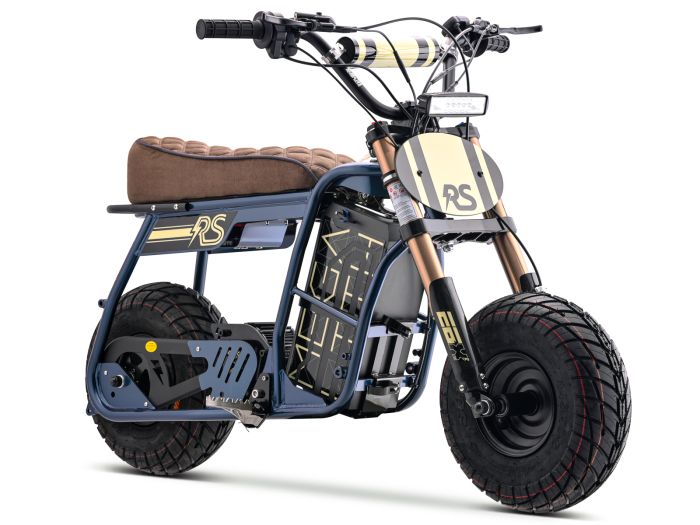

EBOX DRAGSTER RS PRE-ORDER

THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened. Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets. .

SPECS

Frame type Full duplex

Fork 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions

Fork Clamps Billet 6061 T6 CNC machined triple clamps

Bar Risers 6061 T6 CNC machined 35mm rise Ø22.2

Front wheel size 6"

Rear wheel size 6"

Front brake Hyraulic Disc (Right lever) e-moto brakes

Front disc Wavey rotor 180mm, 6 bolt 48mm BCD

Rear brake Hyraulic Disc (Left lever) e-moto brakes

Rear disc Wavey rotor 160mm, 6 bolt 48mm BCD

Front tyre 145/70-6 SUNF fast SM tyres

Rear tyre 145/70-6 SUNF fast SM tyres

Chain Uprated performance gold 219H 108L

Gearing Front 10T, Rear 55T

Max load 100kg

Handlebar 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad

Seat Luxurious suede RS wedge seat

Motor 72V EBX PMSM motor with temp feedback and encoder

Rated Power 5.4KW

Peak power 6.3KW (8.5hp)

Max RPM 9,000

Battery New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch

Controller 80 Amp fardriver controller

Throttle SURRON style full twist

Display TFT odometer display with 3 speed modes and fault code analysis software

Connectors Automotive connectors with sealed wiring harness

Charger AC 100-240V, Output: 84V, 6A

Light LED

TECH

Charge time 4-5 hours

Range 28-31 miles (45-50Km)

Top speed 56mph (88Km/h)

External adjustability 3 riding modes

Frame construction High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.

Waterproof IP54

Other USB A + C charging port

Wheelbase 910mm

Ground clearance 120mm

Seat height 610mm

Bar height 825mm

Bike Weight 49kg (108lbs)

Warranty EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
