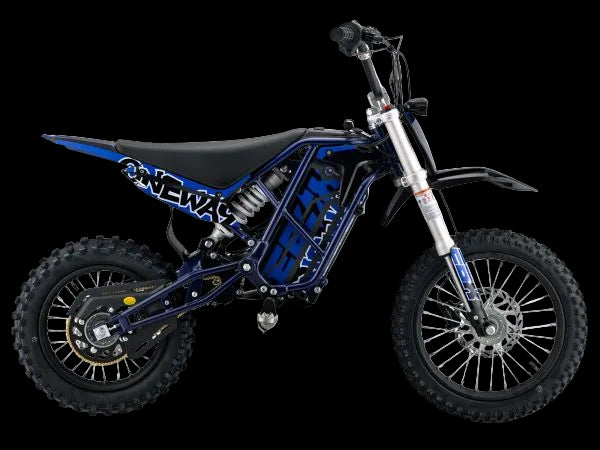

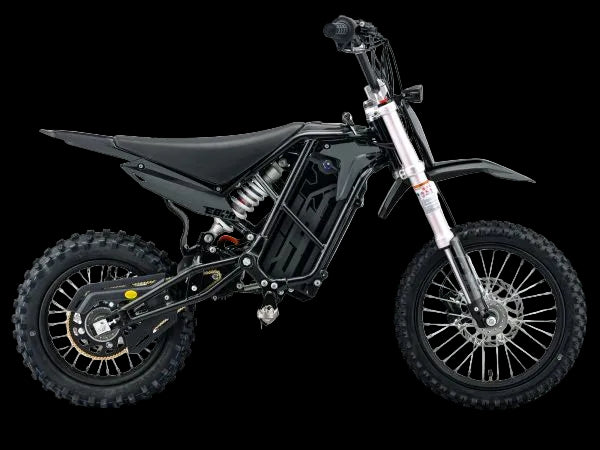

EBOX V3 72RS PRE ORDER

EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain! Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance. Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car. .

SPECS

Frame type V3 Double Cradle

Front wheel size 14"

Rear wheel size 12"

Fork 150mm travel USD

Rear Suspension Progressive mono shock 150mm travel

Bar Risers Alloy Cast 36mm rise Ø22.2

Front brake Hyraulic Disc (Right lever) e-moto brakes

Front disc 180mm rotor, 4 bolt

Rear brake Hyraulic Disc (Left lever) e-moto brakes

Rear disc 180mm rotor, 4 bolt

Front tyre Upgraded 60/100-14 Dirt

Rear tyre Upgraded 80/100-12 Dirt

Chain 219H 120L

Gearing Front 10T, Rear 70T

Max load 85kg

Handlebar EBOX Race 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad

Seat EBOX fat seat

Motor EBX PMSM motor with temp feedback and encoder

Rated Power 5.4KW

Peak power 6.3KW (8.5hp)

Max RPM 9,000

Battery 72v 25 Ah battery with smart BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch

Controller 80 Amp Fardriver controller

Throttle SURRON style full twist

Display TFT odometer display with 3 speed modes and fault code analysis software

Connectors Automotive connectors with sealed wiring harness

Headlight LED headlight and switch

Charger AC 100-240V, Output: 84V, 6A

TECH

Charge time 4-5 hours

Range 28-31 miles (45-50Km)

Top speed 55mph (89Km/h)

External adjustability 3 riding modes

Frame construction V3 wide frame (190mm) large capacity battery, race inspired revised geometry, Increased fork travel, increased pre-load and heavier oil, dropper footpeg bar.

Waterproof IP54

Other USB A + C charging port

Wheelbase 980mm

Seat height 650mm

Bike Weight 51.2kg (112lbs)

Warranty EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
