Rawrr Mantis Mini R
Rawrr Mantis Mini R
Regular price
$3,050.00 USD
Regular price
Sale price
$3,050.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ALL PRICING INCLUDES ASSEMBLY
LOCAL PICKUP AT 320 MILLER AVE. ANN Arbor, MI. 48103
Tech Specs
Measurements
Length
62.2 In
Height
37.8In
Width
26.42In
Max Clearance
9.45In
Wheelbase
42.24 In
Seat Height
28.89In
Front Tire Size
60/100-14
Rear Wheel Size
2.75/12
Front Brake Disc Size
203 mm
Rear Brake Disc Size
203 mm
Bike Weight with Battery
110 Lbs
Max Payload
165 Lbs
pERFORMANCE
Max speed
46 MPH
Acceleration
0-18.6 MPH 1.8 s | 0-31 MPH 3.6s | 0-46 MPH 10s
range
31 Miles
Max Torque
154.9 Ft Lbs
Max Motor Power
6000W
Regular Motor Power
2000W
Climbing Ability
45 Degree
SAFETY
Motor & Controller-IP
IP66
Battery & connector IP
IP55

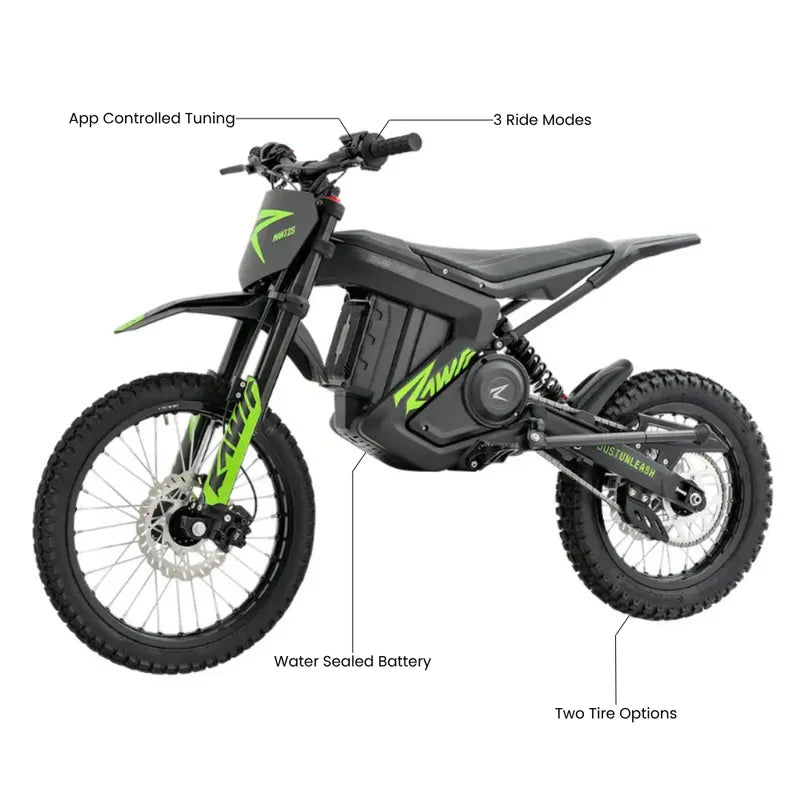

App-Controlled Tuning
Yes
Max Speed Limiter
Yes
Kill Switch
Yes
Chain Cover
Yes
Kickstand Sensor
Yes
Brake Sensors
Yes
ElECTRICAL
dash Type
LCD
Battery type
Lithium Ion
Battery Capacity
72V 1440WH
Battery Life Cycle
800 Cycles
Charger Input Voltage
AC110/220V
Charge Time
3-6 Hours
Controller Type
FOC Sine Wave
Ride Modes
1 / 2 / 3
MeCHANIcal
Brake Type
2-Piston Hydraulic Disc Brakes
Front Fork Travel Distance
4.33 In
Motor type
Brushless
Motor Cooling Method
Air Cooling
Drive System
Direct Chain Drive
Motor max Operation Temperature
85 Degree Celsius
Frame
6061 Aluminium Alloy
Magnetic Leash
For safety purposes, the Mantis Mini R comes with a magnetic kill switch. The rider straps the leash to their wrist, and in the case of an accident, the magnet will be pulled off. This disengages the throttle preventing any further acceleration after a loss of control.
