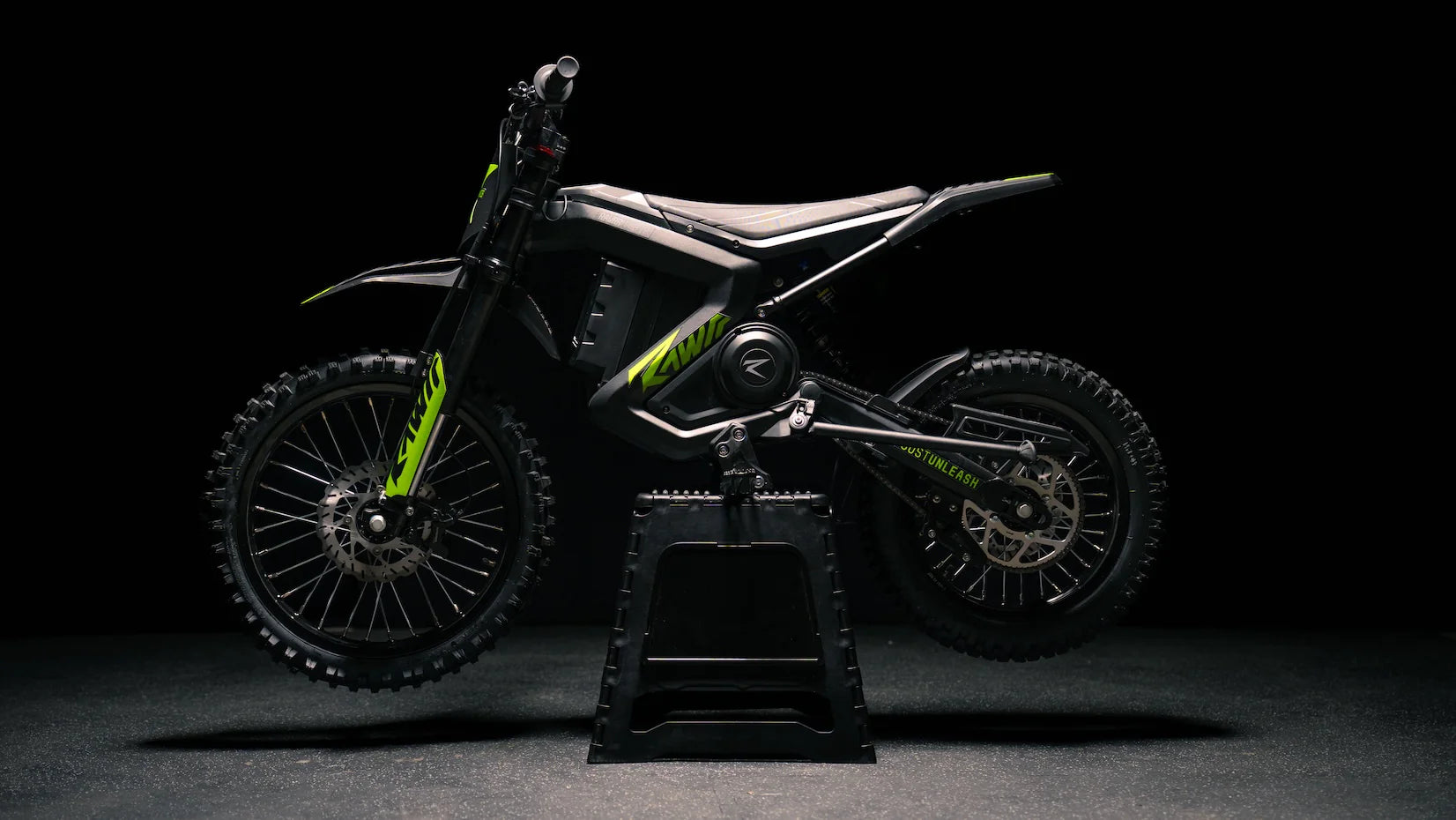

Rawrr Mantis Mini R17

Rawrr Mantis Mini R17

Regular price $3,150.00 USD
Regular price Sale price $3,150.00 USD
Sale Sold out
Shipping calculated at checkout.

ALL PRICING INCLUDES ASSEMBLY

LOCAL PICKUP AT 320 MILLER Ave. Ann Arbor, MI. 48103

Measurements


Length
64.57 IN
Height
38.98 IN

Width
26.42 IN
Max clearance
10.63 IN

Wheelbase
42.56 IN
Seat height
30 IN

Front Tire Size
70/100-17
Rear Tire Size
3.00/14

Front brake Disc Size
203 mm
Rear brake Disc Size
203 mm

Bike weight with battery
110 Lbs
Max Payload
165 Lbs

pERFORMANCE


Max speed
46 MPH

Acceleration
0-18.6 MPH 1.8 s      |      0-31 MPH  3.6s    |     0-46 MPH   10s

range
31 Miles

Max Torque
154.9 Ft Lbs

Max Motor Power
6000W
Regular Motor Power
2000W

Climbing Ability
45 Degree

SAFETY


Motor & Controller-IP
IP66
Battery & connector IP
IP55

App-Controlled Tuning
Yes
Max Speed Limiter
Yes

Kill Switch
Yes

Chain Cover
Yes

Kickstand Sensor
Yes

Brake Sensors
Yes

ElECTRICAL


dash Type
LCD

Battery type
Lithium Ion
Battery Capacity
72V 1440WH

Battery Life Cycle
800 Cycles

Charger Input Voltage
AC110/220V
Charge Time
3-6 Hours

Controller Type
FOC Sine Wave
Ride Modes
1 / 2 / 3

MeCHANIcal


Brake Type
2-Piston Hydraulic Disc Brakes

Front Fork Travel Distance
4.33 In

Motor type
Brushless
Motor Cooling Method
Air Cooling

Drive System
Direct Chain Drive

Motor max Operation Temperature
85 Degree Celsius

Frame
6061 Aluminium Alloy
